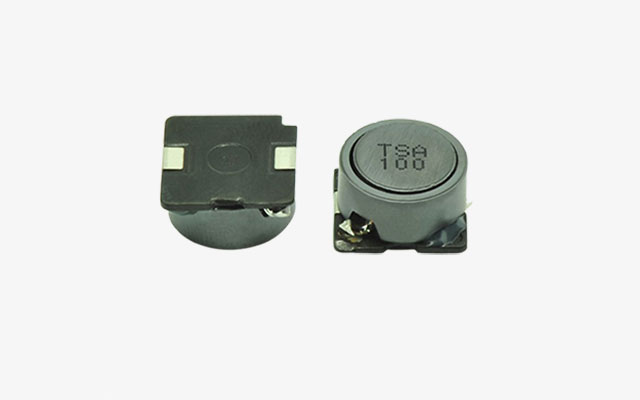

SF Series
SF Series

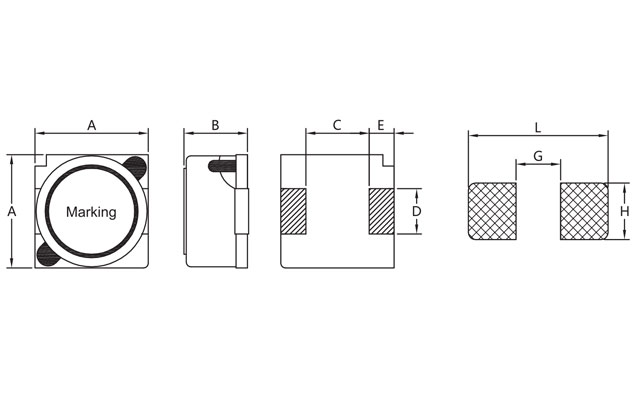

| Series | Dimensions(mm) | |||||||
| A | B | C | D | E | L | G | H | |
SF6028 | 6.0±0.3 | 3.1 Max. | 4.0±0.2 | 2.0±0.2 | 0.9 | 7.0 | 4.0 | 2.2 |
SF6045 | 6.0±0.3 | 4.8 Max. | 4.0±0.2 | 2.0±0.2 | 0.9 | 7.0 | 4.0 | 2.2 |
SF7032 | 7.0±0.3 | 3.5 Max. | 4.9±0.2 | 2.0±0.2 | 0.9 | 7.9 | 4.9 | 2.2 |
SF7045 | 7.0±0.3 | 4.8 Max. | 4.9±0.2 | 2.0±0.2 | 0.9 | 7.9 | 4.9 | 2.2 |
| SF7055 | 7.0±0.3 | 5.8 Max. | 4.9±0.2 | 2.0±0.2 | 0.9 | 7.9 | 4.9 | 2.2 |
SF10145 | 10.1±0.3 | 4.8 Max. | 6.0±0.2 | 3.0±0.2 | 2.0 | 10.6 | 5.6 | 3.2 |
SF10165 | 10.1±0.3 | 7.0 Max. | 6.0±0.2 | 3.0±0.2 | 2.0 | 10.6 | 5.6 | 3.2 |
SF12555 | 12.5±0.3 | 5.8 Max. | 8.0±0.2 | 3.0±0.2 | 2.0 | 13.6 | 8.6 | 3.2 |
SF12565 | 12.5±0.3 | 6.9 Max. | 8.0±0.2 | 3.0±0.2 | 2.0 | 13.6 | 8.6 | 3.2 |
| SF12575 | 12.5±0.3 | 7.9 Max. | 8.0±0.2 | 3.0±0.2 | 2.0 | 13.6 | 8.6 | 3.2 |
备注：
Rated current: The DC current at which the inductance decreases to 75 % of its initial value or when △t=40℃,whichever is lower(Ta=20C)
