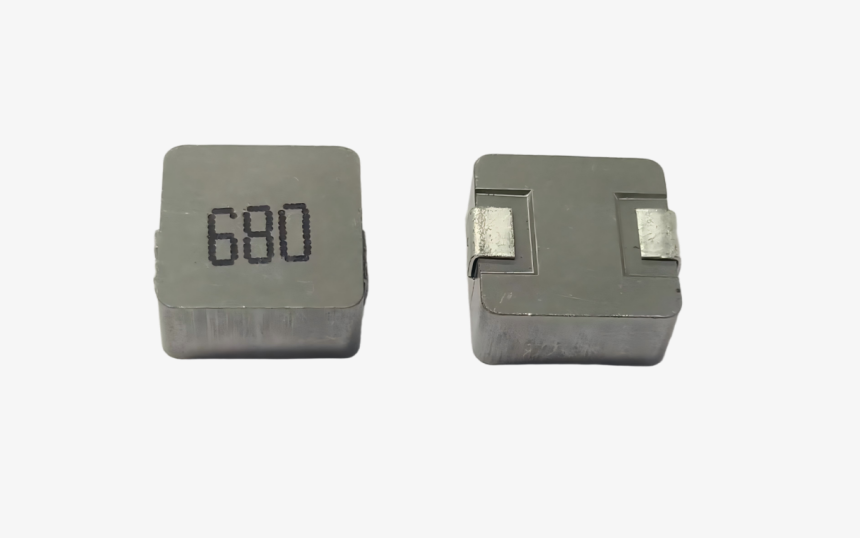

SMPA Series.pdf

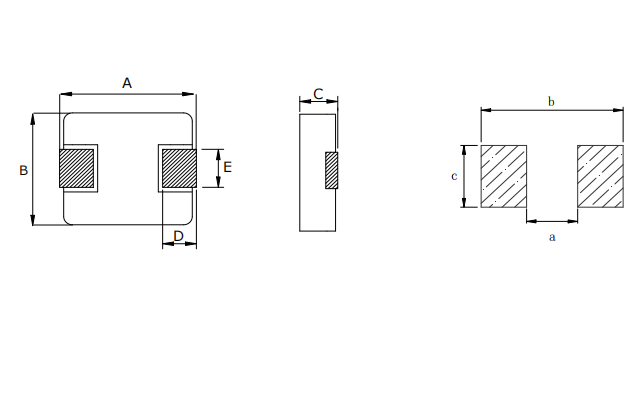

| Series | Dimensions(mm) | |||||||
| SMPA | A | B | C | D | E | a | b | c |
| SMPA0402 | 4.4±0.35 | 4.2±0.25 | 1.8±0.2 | 0.8±0.3 | 2.0±0.3 | 2.2 Typ | 5.2 Typ | 2.5 Typ |
| SMPA0412 | 4.4±0.35 | 4.2±0.25 | 1.0±0.2 | 0.8±0.3 | 2.0±0.3 | 2.2 Typ | 5.2 Typ | 2.5 Typ |
| SMPA0503 | 5.0±0.3 | 5.2±0.2 | 2.8±0.2 | 1.2±0.2 | 2.2±0.3 | 2.2 Typ | 6.0 Typ | 2.5 Typ |
| SMPA0518 | 5.4±0.35 | 5.2±0.2 | 1.6±0.2 | 1.2±0.2 | 2.2±0.3 | 2.2 Typ | 6.0 Typ | 2.5 Typ |
| SMPA0603 | 7.0±0.3 | 6.6±0.2 | 2.8±0.2 | 1.6±0.3 | 3.0±0.3 | 3.7 Typ | 8.4 Typ | 3.5 Typ |
| SMPA0604 | 7.0±0.3 | 6.6±0.2 | 3.8±0.2 | 1.6±0.3 | 3.0±0.3 | 3.7 Typ | 8.4 Typ | 3.5 Typ |
| SMPA0605 | 7.0±0.3 | 6.6±0.2 | 4.8±0.2 | 1.6±0.3 | 3.0±0.3 | 3.7 Typ | 8.4 Typ | 3.5 Typ |
| SMPA0615 | 7.0±0.3 | 6.6±0.2 | 1.3±0.2 | 1.6±0.3 | 3.0±0.3 | 3.7 Typ | 8.4 Typ | 3.5 Typ |
| SMPA0618 | 7.0±0.3 | 6.6±0.2 | 1.6±0.2 | 1.6±0.3 | 3.0±0.3 | 3.7 Typ | 8.4 Typ | 3.5 Typ |
| SMPA0624 | 7.0±0.3 | 6.6±0.2 | 2.2±0.2 | 1.6±0.3 | 3.0±0.3 | 3.7 Typ | 8.4 Typ | 3.5 Typ |
| SMPA1003 | 11.5 Max | 10.0±0.3 | 2.8±0.2 | 2.0±0.5 | 3.0±0.5 | 5.4 Typ | 13.6 Typ | 4.1 Typ |
| SMPA1004 | 11.5 Max | 10.0±0.3 | 3.8±0.2 | 2.0±0.5 | 3.0±0.5 | 5.4 Typ | 13.6 Typ | 4.1 Typ |
| SMPA1005 | 11.5 Max | 10.0±0.3 | 4.8±0.2 | 2.0±0.5 | 3.0±0.5 | 5.4 Typ | 13.6 Typ | 4.1 Typ |
| SMPA1204 | 13.45±0.35 | 12.8±0.3 | 4.0 Max | 2.0±0.5 | 5.0±0.3 | 8.0 Typ | 14.5 Typ | 5.5 Typ |
| SMPA1205 | 13.45±0.35 | 12.6±0.3 | 4.8±0.2 | 2.0±0.5 | 5.0±0.3 | 8.0 Typ | 14.5 Typ | 5.5 Typ |
| SMPA1206 | 13.45±0.35 | 12.6±0.3 | 5.8±0.2 | 2.0±0.5 | 5.0±0.3 | 8.0 Typ | 14.5 Typ | 5.5 Typ |
| SMPA1265 | 13.45±0.35 | 12.6±0.3 | 6.5 Max | 2.0±0.5 | 5.0±0.3 | 8.0 Typ | 14.5 Typ | 5.5 Typ |
| SMPA1707 | 17.15±0.35 | 17.15 Max | 7.0 Max | 2.5±0.5 | 12.0±0.3 | 11.2 Typ | 18.2 Typ | 12.8 Typ |
Isat: DC current at which the inductance drops 30% from its value without current.
Irms: DC current that causes the temperature rise (△T=40°C) from 20°C ambient
