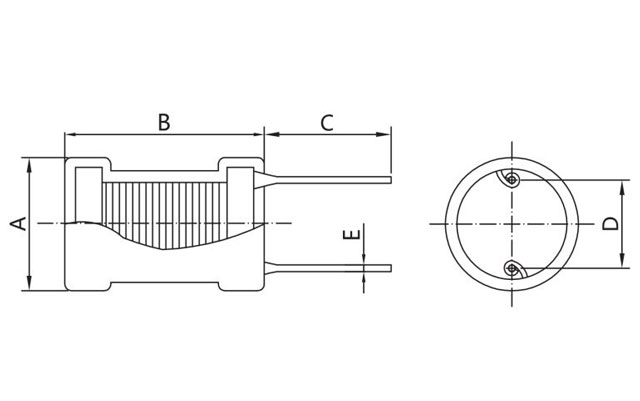

Series	Dimensions(mm)
	A	B	C	D	E
PK0406	5.5 Max	8.0 Max	15.0 Ref	2.0±0.5	0.50 Ref
PK0507	6.0 Max	9.0 Max	15.0 Ref	2.5±0.5	0.60 Ref
PK0608	7.5 Max	10.0 Max	15.0 Ref	3.0±0.5	0.60 Ref
PK0810	10.0 Max	13.0 Max	15.0 Ref	5.0±0.5	0.65 Ref
PK0912	11.0 Max	15.0 Max	15.0 Ref	5.0±0.5	0.80 Ref
PK1012	12.0 Max	15.0 Max	15.0 Ref	5.0±0.5	0.80 Ref
PK1016	12.0 Max	19.0 Max	15.0 Ref	5.0±0.5	0.80 Ref

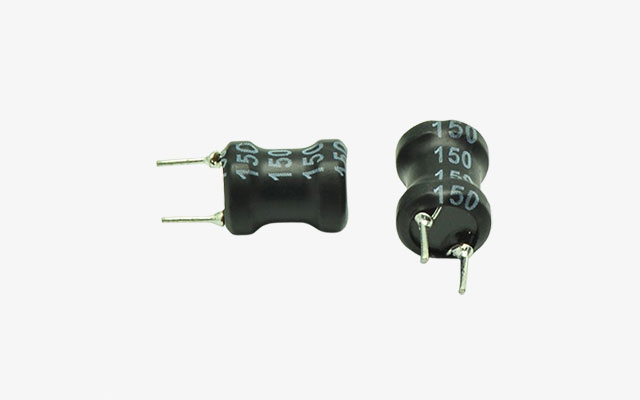

PK Series
