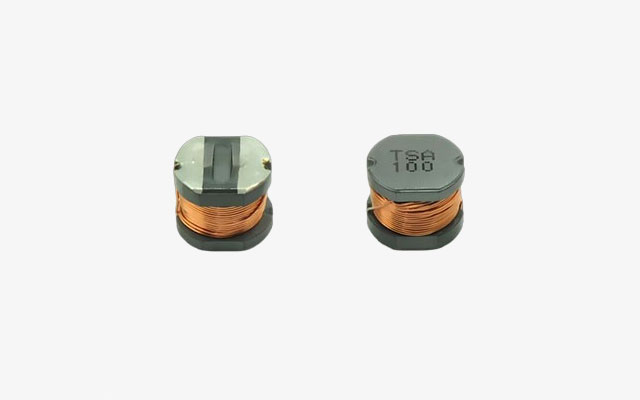

SD Series
SD Series

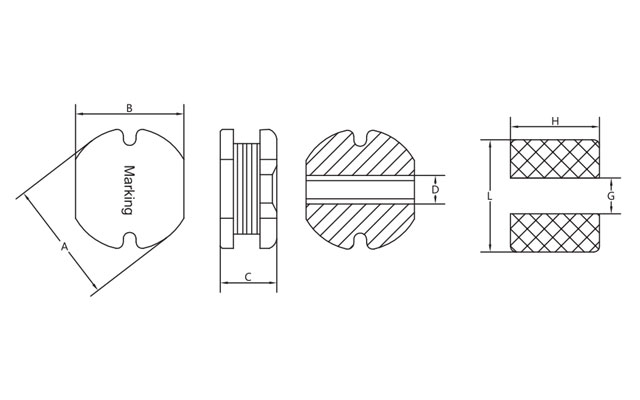

| Series | Dimensions(mm) | ||||||
| A | B | C | D | L | G | H | |
| SD0301F | 3.5±0.3 | 3.0±0.3 | 1.1±0.3 | 1.0 | 3.9 | 1.0 | 3.2 |
| SD0302F | 3.5±0.3 | 3.0±0.3 | 2.1±0.3 | 1.0 | 3.9 | 1.0 | 3.2 |
| SD0402F | 4.5±0.3 | 4.0±0.3 | 2.0±0.3 | 1.4 | 6.0 | 1.2 | 4.5 |
| SD0403F | 4.5±0.3 | 4.0±0.3 | 3.2±0.3 | 1.4 | 6.0 | 1.2 | 4.5 |
| SD0503F | 5.8±0.3 | 5.2±0.3 | 3.2±0.3 | 1.6 | 6.5 | 1.5 | 5.5 |
| SD0504F | 5.8±0.3 | 5.2±0.3 | 4.5±0.3 | 1.6 | 6.5 | 1.5 | 5.5 |
| SD0703F | 7.8±0.3 | 7.0±0.3 | 3.5±0.3 | 2.4 | 9.2 | 2.1 | 7.5 |
| SD0705F | 7.8±0.3 | 7.0±0.3 | 5.0±0.3 | 2.4 | 9.2 | 2.1 | 7.5 |
| SD1004F | 10.0±0.3 | 9.0±0.3 | 4.0±0.3 | 2.9 | 11.0 | 2.5 | 9.5 |
| SD1005F | 10.0±0.3 | 9.0±0.3 | 5.4±0.3 | 2.9 | 11.0 | 2.5 | 9.5 |
| SD1307F | 13.0±0.5 | 13.0±0.5 | 7.0±0.3 | 5.0 | 15.0 | 4.5 | 13.7 |
备注：
Rated current: The DC current at which the inductance decreases to 90 % of its initial value or when △t=40℃,whichever is lower(Ta=20C)
