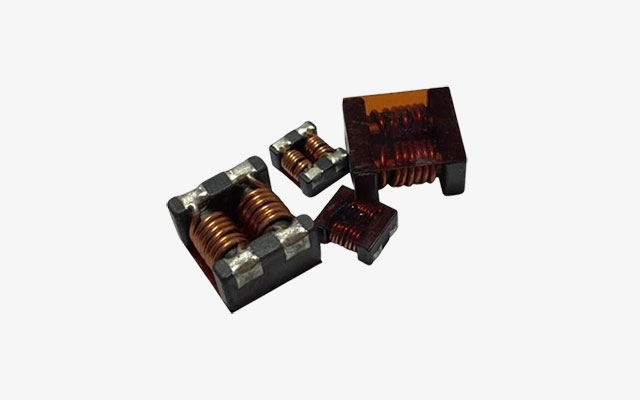

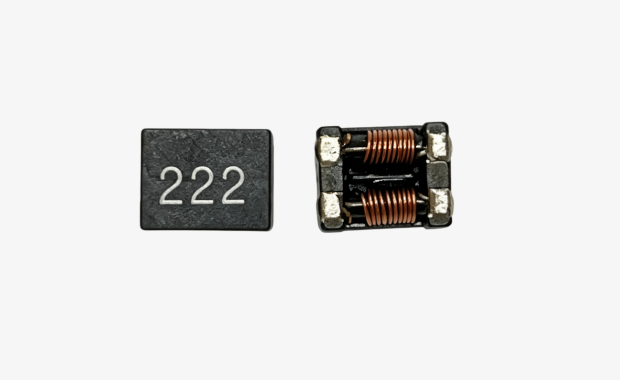

SCM Series
SCM Series

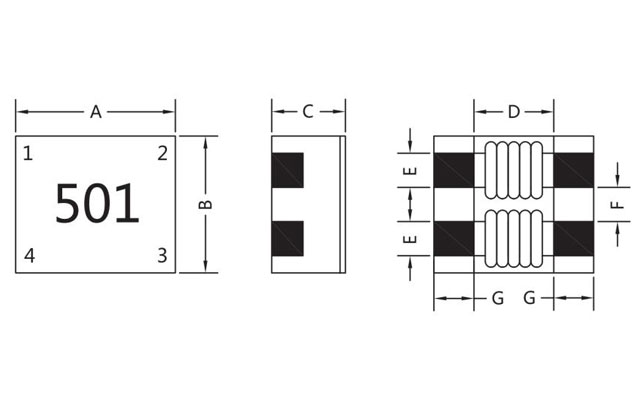

| Series | Dimensions(mm) | ||||||
| A | B | C | D | E | F | G | |
| SCM7060 | 7.0±0.5 | 6.0±0.5 | 3.8 Max | 3.5 Ref | 1.5±0.2 | 1.5±0.2 | 1.75±0.2 |
SCM9070 | 9.0±0.5 | 7.0±0.5 | 4.8 Max | 5.7 Ref | 1.5±0.2 | 2.0±0.2 | 1.70±0.2 |
SCM1211 | 12.0±0.5 | 10.8±0.5 | 6.4 Max | 7.0 Ref | 2.7±0.2 | 2.5±0.2 | 2.50±0.2 |
