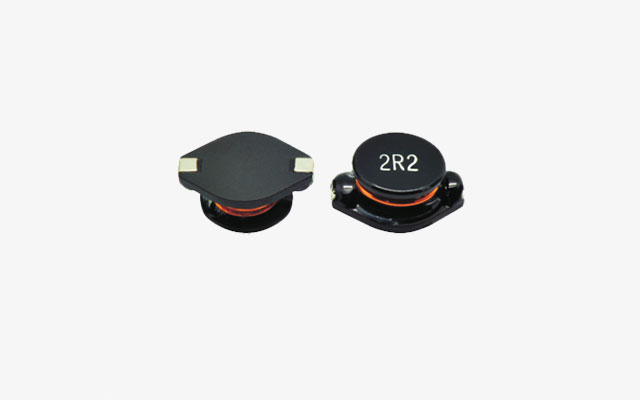

DS Series
DS Series

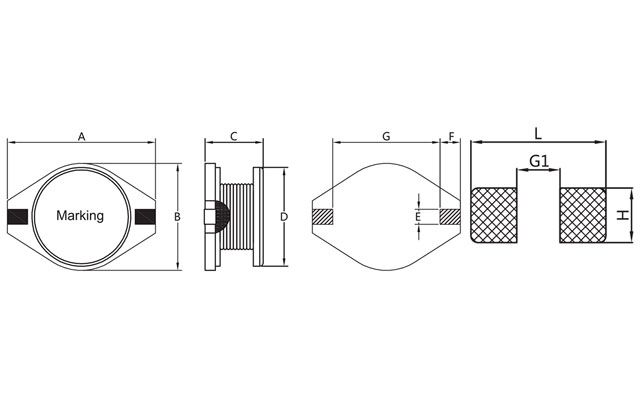

| Series | Dimensions(mm) | |||||||||
| A | B | C | D | E | F | G | L | G1 | H | |
DS1608 | 6.60 Max. | 4.45 Max. | 2.92 Max. | 3.94 | 1.27 | 1.02 | 4.32 | 6.9 | 4.0 | 1.5 |
DS3308 | 12.95 Max. | 9.40 Max. | 3.50 Max. | 8.38 | 2.54 | 2.54 | 7.62 | 13.5 | 7.3 | 3.0 |
DS3316 | 12.95 Max. | 9.40 Max. | 5.21 Max. | 8.38 | 2.54 | 2.54 | 7.62 | 13.5 | 7.3 | 3.0 |
DS3340 | 12.95 Max. | 9.40 Max. | 11.43 Max. | 8.38 | 2.54 | 2.54 | 7.62 | 13.5 | 7.3 | 3.0 |
| DS5022 | 18.54 Max. | 15.24 Max. | 7.11 Max. | 12.7 | 2.54 | 2.54 | 12.7 | 20.1 | 10.3 | 3.0 |
